OBD Fusion is the kind of communication app that makes the most sense when you want your phone to act as a window into your car’s diagnostic system rather than simply display a warning light. I used it with the mindset of a driver trying to understand what the vehicle was reporting, and its appeal became clear quickly: it brings OBD2 readings, diagnostic trouble codes, and customizable dashboard views into one place. That is more useful than guessing from a dashboard warning, but it also means the quality of the experience depends heavily on the adapter, the vehicle, and the initial setup.
Developed by OCTech, LLC, the app is available for Everyone and sits in the communication category, although its practical role is much closer to a hands-on vehicle diagnostic tool. It costs $5.99, with optional in-app purchases ranging from $14.99 to $74.99 per item. The current version is 7.4.0, and it requires Android 7.0 or newer. With a 4.6 average from around 3,200 ratings and over 100,000 installs, it has attracted a substantial group of drivers who want more information than a basic code reader usually provides.
Where drivers usually get stuck
The first thing I would tell a new user is that OBD Fusion is not a magic connection button. The app can read information from a vehicle, but it still needs a compatible OBD2 adapter and a car that exposes the relevant data through its diagnostic port. If the phone cannot connect, the problem may be the adapter, the vehicle’s ignition state, the phone’s connection settings, or the physical port itself. Treating every failed connection as an app fault leads to a lot of unnecessary frustration.
Many people also expect every car to provide the same readings. That is not how vehicle diagnostics work. A newer vehicle may expose a broad set of standard parameters, while an older or less cooperative model may return a smaller selection. Some manufacturer-specific information can also require enhanced diagnostics rather than the basic data available through standard OBD2 communication. The app’s enhanced diagnostics option is therefore valuable, but it should not be interpreted as a guarantee that every module or every sensor will be available on every car.

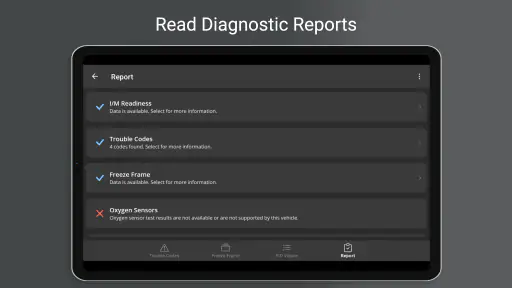

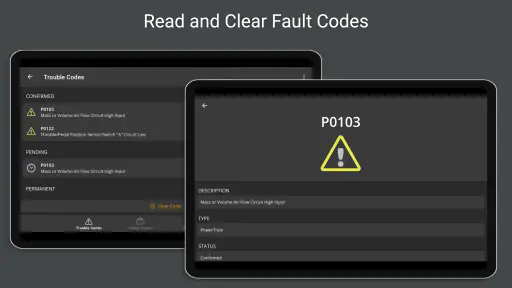

Another common sticking point is the difference between a diagnostic trouble code and a complete diagnosis. OBD Fusion can help read DTCs, which is a major improvement over seeing only a check-engine light, but a code usually points toward a system or condition rather than identifying the exact failed part. I found the app most useful as a way to narrow the investigation, record what the car is reporting, and decide whether a repair needs professional attention. It is less suitable for anyone expecting a single tap to name the faulty component with certainty.

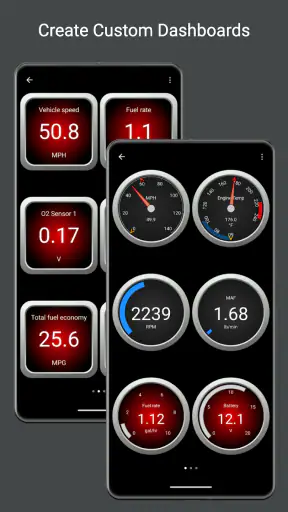

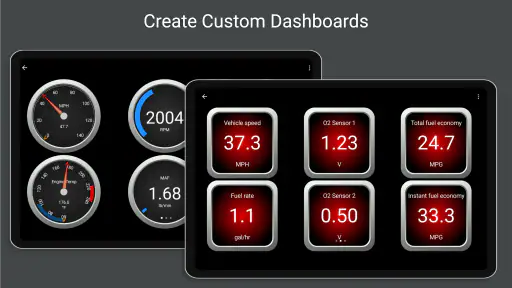

The dashboard builder can create a second kind of friction. Custom dashboards are powerful because they let you put the readings you care about where you can see them, but the initial arrangement takes more thought than using a fixed screen. A dashboard overloaded with gauges becomes difficult to read, especially while driving, and a screen designed for troubleshooting in the driveway is not automatically a good screen for everyday monitoring. I prefer a small, focused layout: only the values that answer the question I am currently trying to investigate.
What to check before blaming the app
Start with the physical connection. The diagnostic connector is normally under the dashboard, but its position and accessibility vary by vehicle. Make sure the adapter is seated firmly and that the vehicle is switched to the state required by the adapter and app. In many situations, accessory power is enough for communication, while the engine does not need to be running. If you are checking live readings, however, the engine may need to be started for those values to change meaningfully. I avoid leaving the ignition on longer than necessary when the engine is not running, particularly if the battery is already weak.
Next, check the adapter’s own status. A small light or indicator may show that it has power, but power does not always mean that it is communicating correctly. If the app sees the adapter but fails during vehicle initialization, that points to a different problem from not seeing the adapter at all. Keeping those two symptoms separate makes troubleshooting much faster.
Phone settings are another practical checkpoint. Depending on the adapter, the connection may use a wireless method that requires the phone to be paired or connected through the appropriate system settings before the app can use it. If the phone has recently connected to another device, it may not be using the adapter you intended. I would close other diagnostic apps, disconnect unused vehicle accessories, and then make one clean connection attempt rather than repeatedly switching between several devices.
It is also worth checking the vehicle’s battery condition. A car can still start while having unstable voltage or enough electrical weakness to make diagnostic communication unreliable. If the connection drops when accessories are turned on, or if the car has recently struggled to start, I would investigate the battery and charging system before drawing conclusions about OBD Fusion. The app can display what the vehicle communicates; it cannot correct unstable vehicle power.
Finally, confirm that the adapter is genuinely intended for OBD2 communication and not merely a generic accessory with limited compatibility. Cheap adapters can be inconsistent, and some may connect to a phone while failing to communicate reliably with a particular vehicle. The app’s usefulness is limited by the weakest part of this chain: phone, adapter, connector, vehicle network, or available data.
A calmer setup process saves time later
I recommend beginning with a simple test rather than immediately building a sophisticated dashboard. Connect the adapter, open the app, and first see whether the vehicle is recognized and whether basic readings appear. If that works, read the available codes before changing anything. Saving or noting the initial state gives you a reference point if a later test creates confusion.
When a warning light is present, resist the urge to clear it immediately. Reading the code first preserves useful information for your own notes or for a mechanic. Clearing a code may turn off the light temporarily without repairing the underlying problem, and it can remove context that would have helped identify an intermittent fault. I see the clearing function as a follow-up step after recording the code and understanding why you are resetting it, not as the first response.
Dashboard customization works best when it follows a question. If I am checking whether the engine reaches normal operating behavior, I choose the readings relevant to that question. If I am investigating a sensor-related code, I focus on the available values that could support or challenge that suspicion. This approach keeps the screen readable and prevents the common mistake of collecting numbers without knowing what decision they are meant to inform.
For a family car, I would create one conservative dashboard for quick checks and another for deeper troubleshooting only if the available data justifies it. A driver who wants to glance at basic vehicle information has different needs from someone comparing readings during a repair test. Separating those purposes makes the app feel less cluttered and reduces the temptation to monitor too much while moving.
Recovering when a connection fails
If OBD Fusion connected previously but stops connecting, I would recover in stages. First, park safely and switch the vehicle off. Remove power from the adapter if possible, wait briefly, and reconnect it. Then restart the phone-side connection instead of repeatedly tapping the connect control. This simple reset often distinguishes a temporary communication state from a persistent compatibility issue.
If the adapter appears connected but the app cannot read the vehicle, check whether the ignition state has changed. A device may remain powered after the car’s systems have entered a different state, creating the impression that everything is ready when the diagnostic network is not. Turning the vehicle fully off, opening and closing the driver’s door if appropriate for the car, and beginning again can be more effective than leaving the adapter plugged in while trying endless reconnects.
When only some readings are missing, do not assume the whole connection has failed. The vehicle may simply not expose those parameters, or the selected dashboard may contain values that are unavailable for that model. I would return to a basic screen, confirm that any standard readings still update, and then treat unavailable items as a vehicle-data limitation unless other symptoms point elsewhere.
Repeated disconnections deserve a physical inspection. A loose adapter, a crowded connector area, or accidental contact with the device can interrupt communication. Heat can also matter in a parked car, especially if the adapter remains plugged in for long periods. I would avoid leaving diagnostic hardware connected indefinitely when it is not needed, both to reduce battery concerns and to eliminate one possible source of intermittent behavior.
If a trouble code returns after being cleared, that is not evidence that the reset failed. It may mean the vehicle detected the same condition again. In that situation, the useful workflow is to record when the code returned, note any driving or starting symptoms, and use the information to guide inspection. Repeatedly clearing the same code without addressing the cause turns the app into a warning-light eraser instead of the diagnostic aid it can be.
When the app is not the cause
Vehicle electronics can be complicated enough that an app reading is only one piece of evidence. A low battery, corroded connection, damaged wiring, a failing sensor, or a problem in a control module can all produce confusing results. OBD Fusion may accurately report an unusual value without being able to explain why it occurred. That distinction matters: a correct reading can still lead to a wrong repair if it is interpreted without context.
There are also situations in which a professional scan tool is the better choice. If the car has serious drivability problems, multiple warning lights, braking or steering concerns, or a fault that affects safety, I would not rely on a phone app as the only diagnostic resource. Enhanced diagnostics can add useful depth, but a workshop may have manufacturer-specific equipment, service information, wiring diagrams, and the experience needed to test the system safely.
The same caution applies to emissions-related troubleshooting. A code may identify a system involved in emissions control, yet replacing the first part associated with that system can be an expensive guess. I would use the app to capture the code and observe relevant patterns, then verify the repair path with a qualified technician or reliable vehicle-specific service information.
Compared with a basic standalone code reader, OBD Fusion offers a more flexible experience because the phone becomes the display and the dashboards can be shaped around the task. A cheap reader may be faster for a one-time code check, especially if you do not want to manage wireless pairing or dashboard design. Compared with a professional scan tool, the app is more approachable and portable, but it does not replace the depth, coverage, or guided testing that professional equipment can provide.
Who will get the most from it?
I think the app is a strong fit for drivers who like to understand their vehicles, people who perform basic maintenance, and owners who want to document diagnostic codes before visiting a repair shop. It is also useful for someone managing more than one vehicle, provided the adapter and vehicle compatibility are handled carefully. The ability to create a dashboard around a particular question is more valuable than a long list of gauges, especially for a technically curious owner who wants repeatable checks.
A realistic everyday example would be a driver who sees the check-engine light appear before a planned trip. Instead of guessing or immediately paying for a code scan, they connect the adapter while parked, read the DTC, save the information, and check whether the car is also showing obvious changes in available live data. That does not make the trip automatically safe, and it does not diagnose the repair, but it gives the driver a clearer basis for deciding whether to stop driving, arrange service, or monitor the situation cautiously.
I would skip this app if you want a completely automatic experience, have no interest in buying or configuring an adapter, or only need a single occasional code read. A simple reader may be less expensive overall for that narrow purpose. I would also avoid treating it as a substitute for professional diagnosis when the vehicle has a serious fault or when the information available through standard OBD2 is too limited for the problem.
My practical verdict
After using OBD Fusion as a diagnostic companion rather than a miracle repair tool, I found its strongest quality to be the way it turns scattered vehicle information into a repeatable workflow. Reading codes, checking available data, creating focused dashboards, and keeping the results together can make a confusing warning more manageable. The app is especially worthwhile when you expect to use it more than once and are willing to spend time getting the adapter and vehicle connection right.
The trade-off is that setup friction is part of the product experience. Connection problems may originate outside the app, available readings vary by vehicle, and a code still requires mechanical judgment. The optional enhanced diagnostics can be helpful for supported vehicles, but I would approach that purchase only after confirming that the additional coverage addresses the kind of information you actually need.
At $5.99, it is a reasonable option for a driver who wants more than a basic scanner and already has a suitable adapter. The Everyone rating makes it broadly accessible, but the practical learning curve is still real: safe parking, careful interpretation, and patience matter more than the age label. With over 100,000 installs and a 4.6 average, its reception suggests that the overall approach works for many owners, while the best results still come from using it thoughtfully.
My recommendation is straightforward: choose OBD Fusion if you want a phone-based tool for reading OBD2 information, organizing diagnostic checks, and building dashboards suited to your own vehicle. Begin with basic connection tests, record codes before clearing them, and treat each reading as evidence rather than a final diagnosis. Used that way, it is a practical bridge between a dashboard warning and an informed repair decision. Its real strength is not replacing a mechanic; it is helping you arrive at the mechanic with better questions and better information.
